Morsø 6170 wall hung

Svanemærket logo
6170-frit_insolus
6170-frit_insolus6170_miljo_in_setting_mrk_dark

Product description

As with all Morsø models, the Morsø 6100 series is constructed using only the highest quality recycled cast iron, the best material for wood-burning stove performance. Cast iron is robust and provides longevity and there are many design advantages of working in cast iron; it is a material that can be moulded into beautiful shapes such and rounded corners thus increasing decorative appeal.

The interaction between light and shade can be enhanced to give this robust material a subtle gentleness.

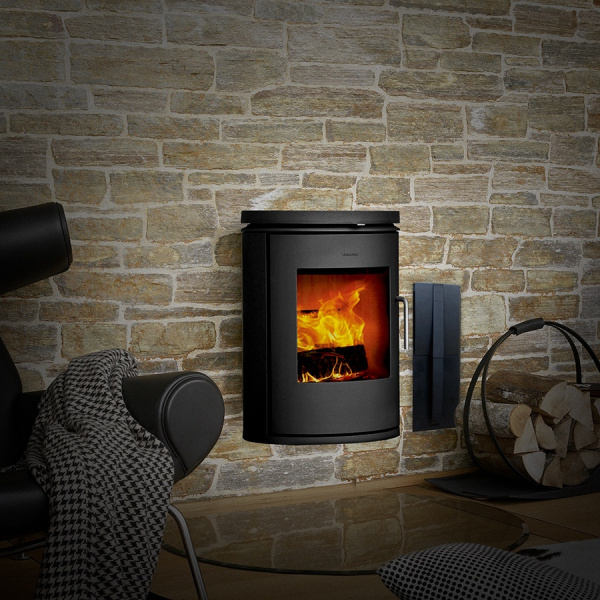

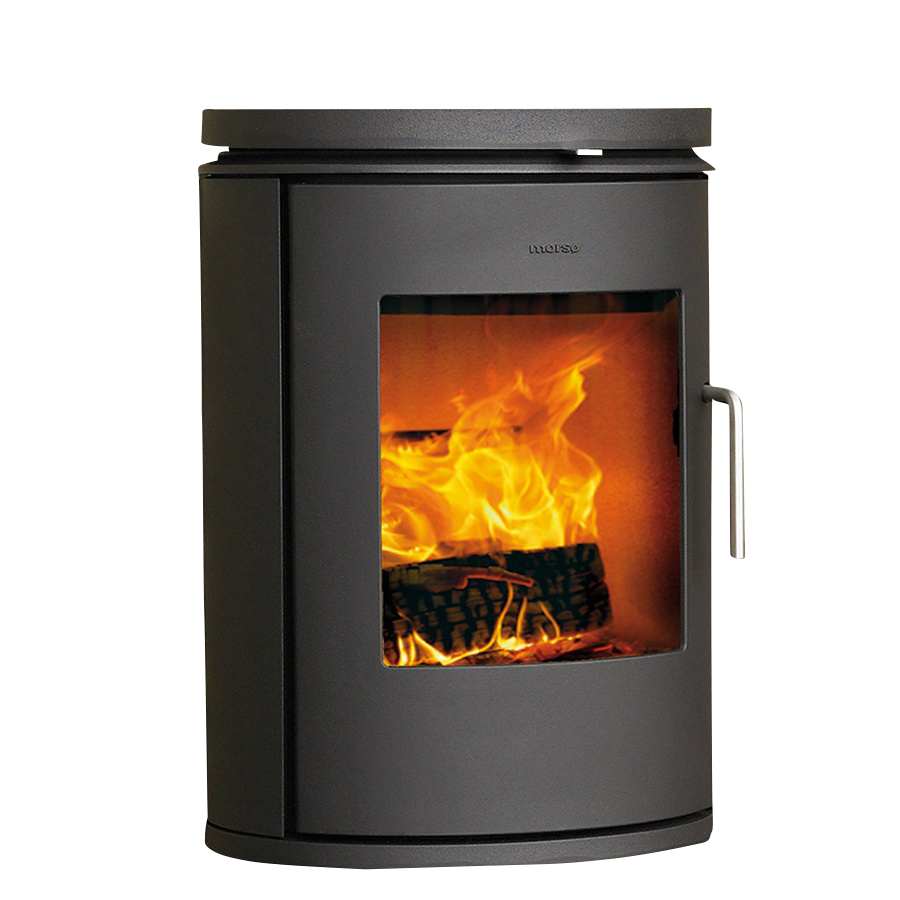

The innovative 6100 wood stove series offers unique style and is the epitome of contemporary stove design. The unique wall-mounted 6170 wood stove is elegant in style; it is compact yet highly efficient and features the characteristic oval design and large curved glass that distinguishes the 6100 series.

Technical data

Properties
  • Convection System
  • Pre-heated combution air
  • Ash Can
  • Airwash system
  • Tertiary Air
Fuel
  • Wood
Approvals
  • EN/N
  • DIN+/AT
  • EPA
  • AS/NZS
Specifications
Energy Performance Labelling Energimærkning
Rated Output (kw) 5,9
Operating Output (kw) 3-6
Heats (m2) 45 - 90
Height (mm) 630
Width (mm) 451
Dept (mm) 386
Flue outlet top Ø 120
Flue outlet rear Ø 120
Weight (kg) 100
Chamber Width (cm) 30
Clearance to combustibles
Rear (mm) 150
Sides (mm) 400
