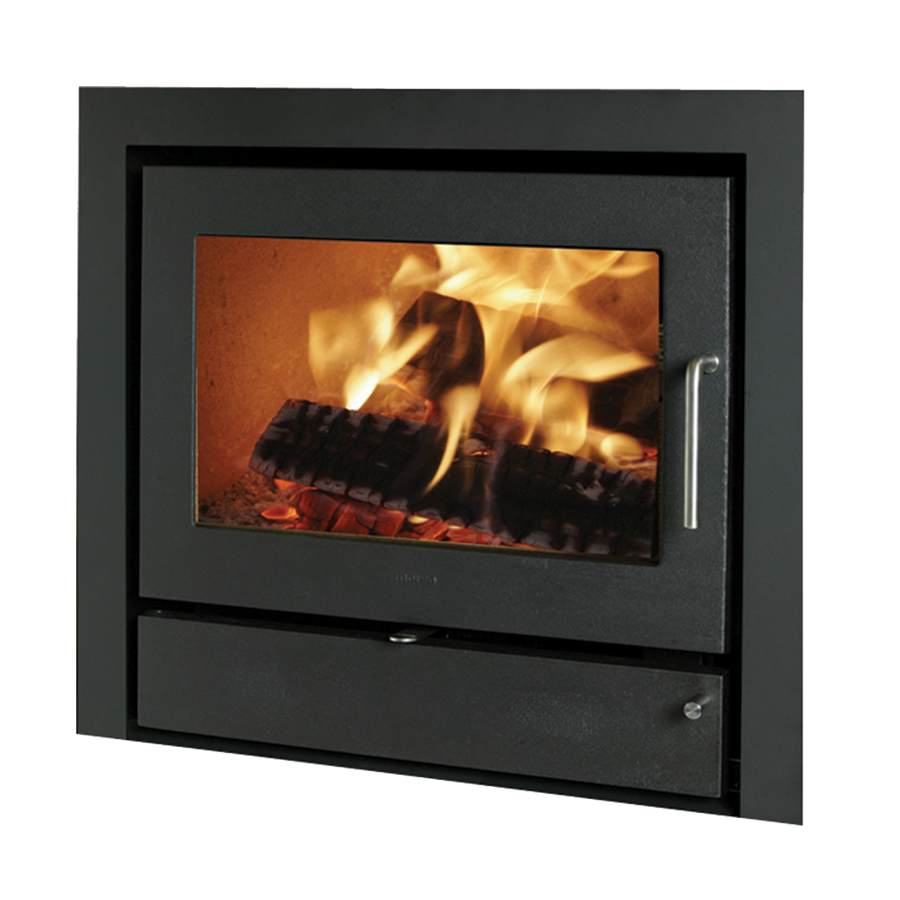

Morsø 5660 blower

The natural, vivid texture of the cast iron surface makes for a rustic yet elegant appearance.
21995
5660_blower_300x300_frit

Product description

The 5660 Blower model insert comes with a super quiet 110 CFM dual squirrel cage fan that pulls cool air from under the insert and blows warm air out above the insert.

The Fan has a rheostat, so you can control the speed of the fan and it has a thermal sensor that will turn the fan on when the insert becomes hot and will turn itself off when the fire goes out.

Just set it and forget it.

Basic Clearance
Stove to side wall  17"
Stove to top 28½”
Stove to side trim 8”
Stove to mantle 26½”
Optional:
3-sided wide trim kit. 38.5"(W) x 31" (H)
3-sided wide trim kit 42.5” (W) x 33” (H)
3-sided wide trim kit 46 3/8 (W) x 35" (H)
Morsø 5660 Zero-Clearance Enclosure 67”H x 39¾W x 25½D

Optional 5660 Zero Clearance Enclosure Blower kit.
The fan is ”high quality adjustable 110 CFM fan that
is powerful and very quiet.



Technical data

Properties
  • Convection System
  • Pre-heated combustion air
  • Pre-heated secondary air supply
  • Airwash system
  • Tertiary Air
  • Riddling grate system
  • Removable handle
Technical data
  • 10 year limited warranty
  • Gasketed seams for tight seals
  • Chromium treated internal casting for durab
  • Reversible flue collar
  • Non catalytic burn technology
  • Clean-burning air wash system
  • Secondary air supply
Fuel
  • Wood
Approvals
  • EN
  • EPA
Specifications
Maximum Heat 50,000
Log size 20"
Max. Area Heated 2200 ft2
Firebox Dimensions 20 3/4" W x 11" D
Firebox volume/capacity 1.49 ft3
Outside air supply Available
Gross Weight 383 lbs
Mobile home approved No
Rated Output (kw) 6,5
Operating Output (kw) 4-8
Heats (m2) 60 - 120
Height (mm) 586
Width (mm) 710
Dept (mm) 436
Flue outlet top Ø 150
Flue outlet rear Ø 150
Weight (kg) 125
Chamber Width (cm) 58
Clearance to combustibles
Rear (mm) 100
Sides (mm) 400
