Morsø 1435

Produced from 2005-2018
Discontinued Product
1435_300x300_frit_13628

Product description

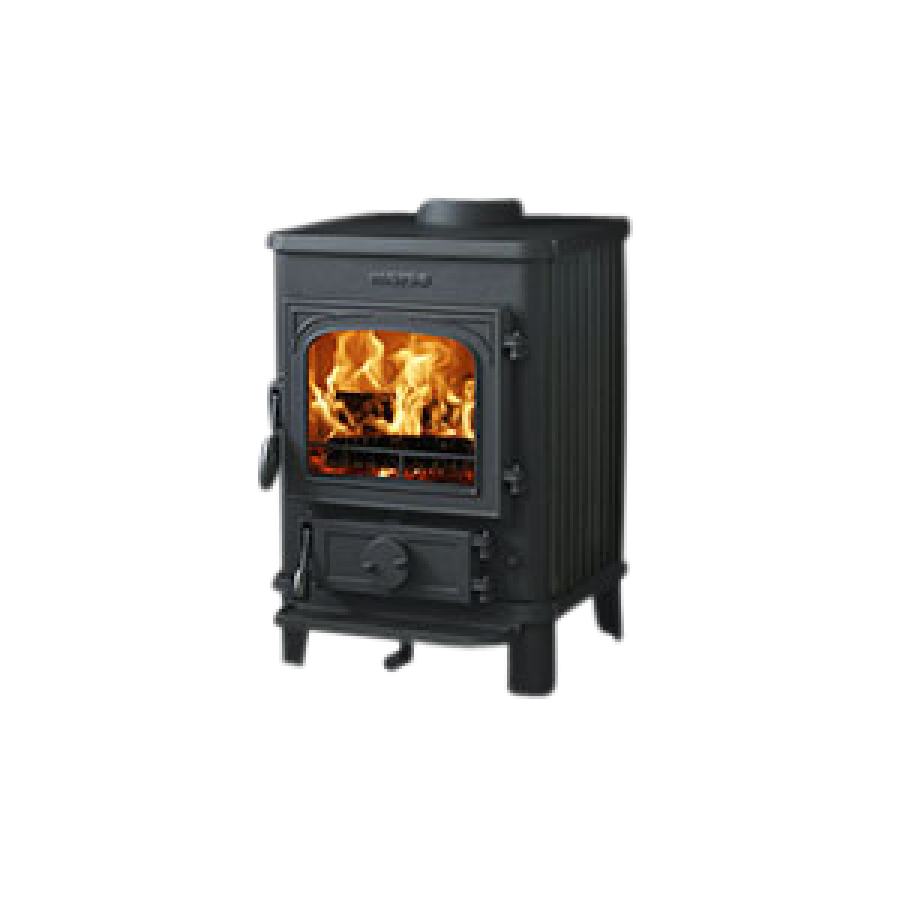

The Morsø 1435 Squirrel is a small but perfectly formed multi-fuel stove. It comes with a stay-clean glass, convenient ashpan. It is easy to see why the Morsø 1400 Squirrel Series is the most popular small cast iron stove in Britain.

Its rated output of 4.6 kW makes the 1435 Squirrel ideally suited for small and medium sized rooms and makes a lovely addition to any home.

The Morsø 1430 ribbed sides and a plain door - Is also fitted with bottom and rear heat shield.

Tapping locations:
Horizontal centreline 230 mm
From top to centreline 74 mm
Vertical centreline 228 mm
Tapping diameter 1" BSP

Technical data

Properties
  • Radiant Heat
  • Ash Can
  • Riddling grate system
  • Primary airsupply
  • Secondary airsupply
  • BOptional boiler
Fuel
  • Multifuel
Approvals
  • EN
Specifications
Energy Performance Labelling Energimærkning
Rated Output (kw) 4,6
Height (mm) 546
Width (mm) 388
Dept (mm) 373
Flue outlet top Ø 125
Flue outlet rear Ø 125
Weight (kg) 75
Chamber Width (cm) 28
Clearance to combustibles
Rear (mm) 600
Sides (mm) 600
