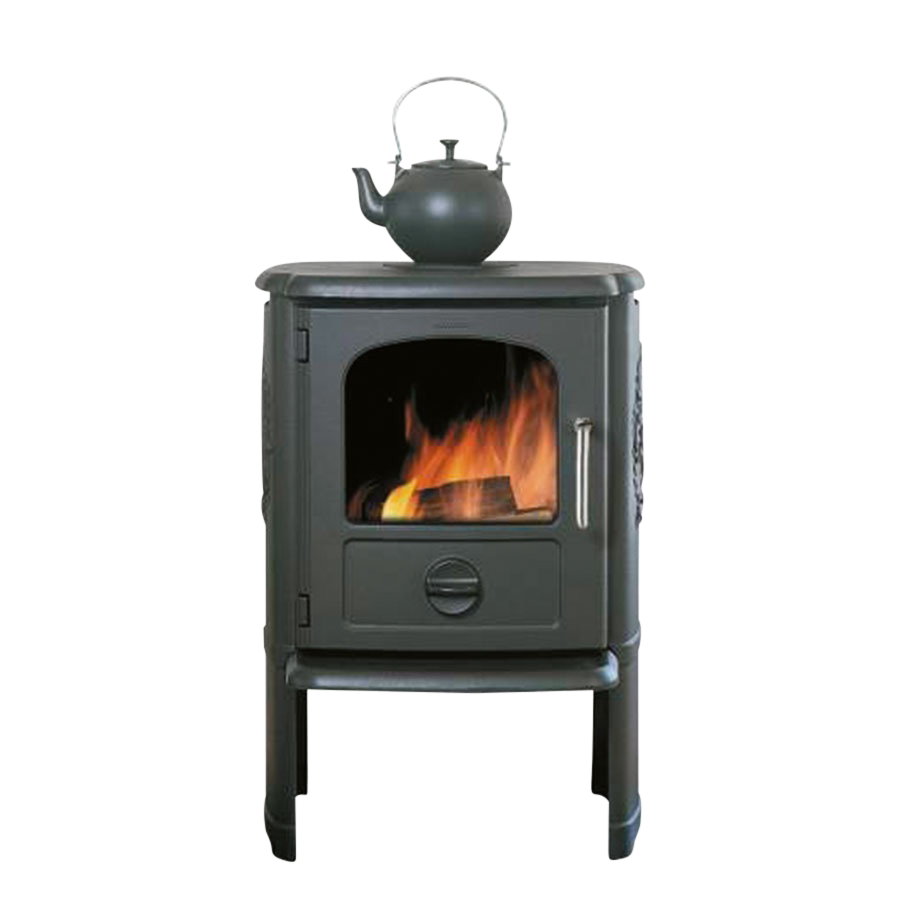

Morsø 3142

Brændeovn med tradition og fornyelse
21995
Forhandlere
Katalog
gx_morsoe_3142_glat_300x300_frit

Product description

The 3142 is equipped with a riddling grate and ashpan, making it easy to remove ash and clean the stove.
It is manufactured using the latest combustion principles with tertiary air supply and meets the most stringent environmental requirements.

It can be fired with wood, briquettes or approved smokeless fuel and is suitable for heating an area of up to 75 cubic metres.

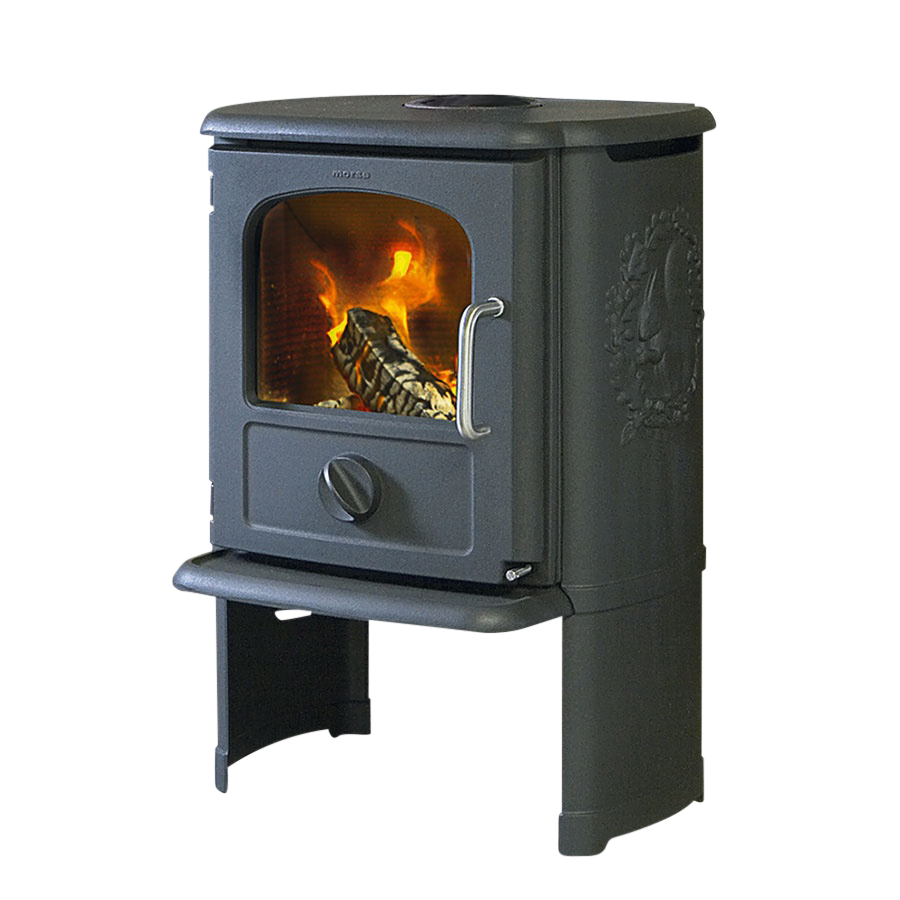

3142 is available with ribbed or squirrel sides.

Technical data

Properties
  • Convection Fan
  • Pre-heated combution air
  • Pre-heated secondary air supply
  • Ash Can
  • Airwash system
  • Tertiary Air
  • Riddling grate system
Fuel
  • Multifuel
Approvals
  • DIN+
  • EN/N
  • DEFRA
  • EPA
Specifications
Energy Performance Labelling
Rated Output (kw) 5,2
Operating Output (kw) 3-6
Heats (m2) 45 - 90
Height (mm) 739
Width (mm) 514
Dept (mm) 450
Flue outlet top Ø 125
Flue outlet rear Ø 125
Weight (kg) 110
Chamber Width (cm) 30
Clearance to combustibles
Rear (mm) 200
Sides (mm) 400
Guides & Instructions
