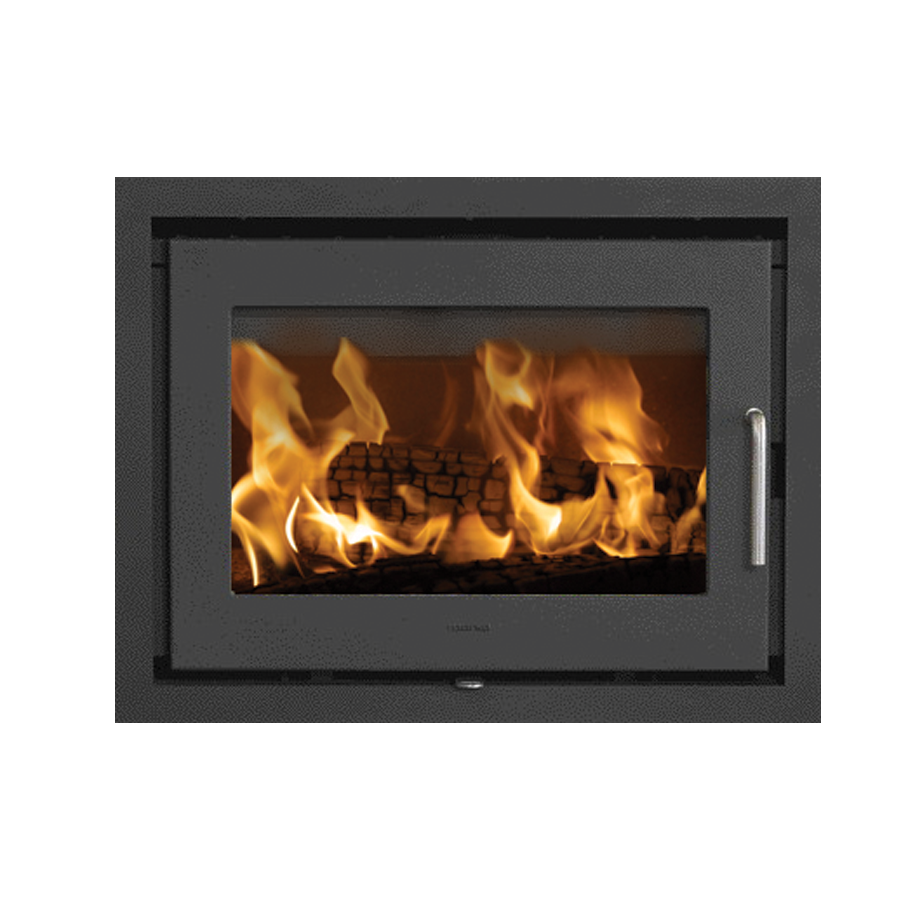

Morsø 5660 insert

The natural, vivid texture of the cast iron surface makes for a rustic yet elegant appearance.
21995
5660_300x300_frit_20151

Designed to meet the simplicity of modern, contemporary lifestyle, the Morsø 5660 Standard insert offers the discerning homeowner an unparalleled ‘window of fire’. Clean lines, a huge window and a 4-sided ‘picture-frame’ make the 5660 Standard the epitome of Scandinavian Design and Function.

Continuing the Morsø heritage, the insert 5660 Standard is manufactured in fine grade cast iron using 98% recycled material; it incorporates ‘state of the art’ non-catalytic combustion technology for environmentally friendly operation.

The insert 5660 Std has been awarded the Nordic Swan Eco-label, a public environmental certification which sets high standards not only in terms of low particle emissions and high efficiency, but it also recognizes Scandinavian companies that actively seek to reduce their ‘Carbon footprint’ also through environmentally sound production practices and recycled packaging.

Basic Clearance
Stove to side wall  17"
Stove to top 26½”
Stove to side trim 8”
Stove to mantle 28½”
Optional:
3-sided wide trim kit. 38.5"(W) x 31" (H)
3-sided wide trim kit 42.5” (W) x 33” (H)
3-sided wide trim kit 46 3/8 (W) x 35" (H)
Morsø 5660 Zero-Clearance Enclosure 67”H x 39¾W x 25½D

Optional 5660 Zero Clearance Enclosure Blower kit.
The fan is ”high quality adjustable 110 CFM fan that
is powerful and very quiet.


Technical data
Technical data
  • Convection System
  • Pre-heated combustion air
  • Pre-heated secondary air supply
  • Airwash system
  • Tertiary Air
  • Riddling grate system
  • Removable handle
Technical data
  • 10 year limited warranty
  • Gasketed seams for tight seals
  • Chromium treated internal casting for durab
  • Reversible flue collar
  • Non catalytic burn technology
  • Clean-burning air wash system
  • Secondary air supply
Fuel
  • Wood
Approvals
  • EN/N
  • EPA
Technical data
Maximum Heat 50,000
Log size 20"
Max. Area Heated 2200 ft2
Firebox Dimensions 20 3/4" W x 11" D
Firebox volume/capacity 1.49 ft3
Gross Weight 275 lbs
Mobile home approved No
Rated Output (kw) 6,5
Operating Output (kw) 4-8
Heats (m2) 60 - 120
Height (mm) 586
Width (mm) 710
Dept (mm) 436
Flue outlet top Ø 150
Flue outlet rear Ø 150
Weight (kg) 125
Chamber Width (cm) 58
Clearance to combustibles
Rear (mm) 100
Sides (mm) 400
