Product description

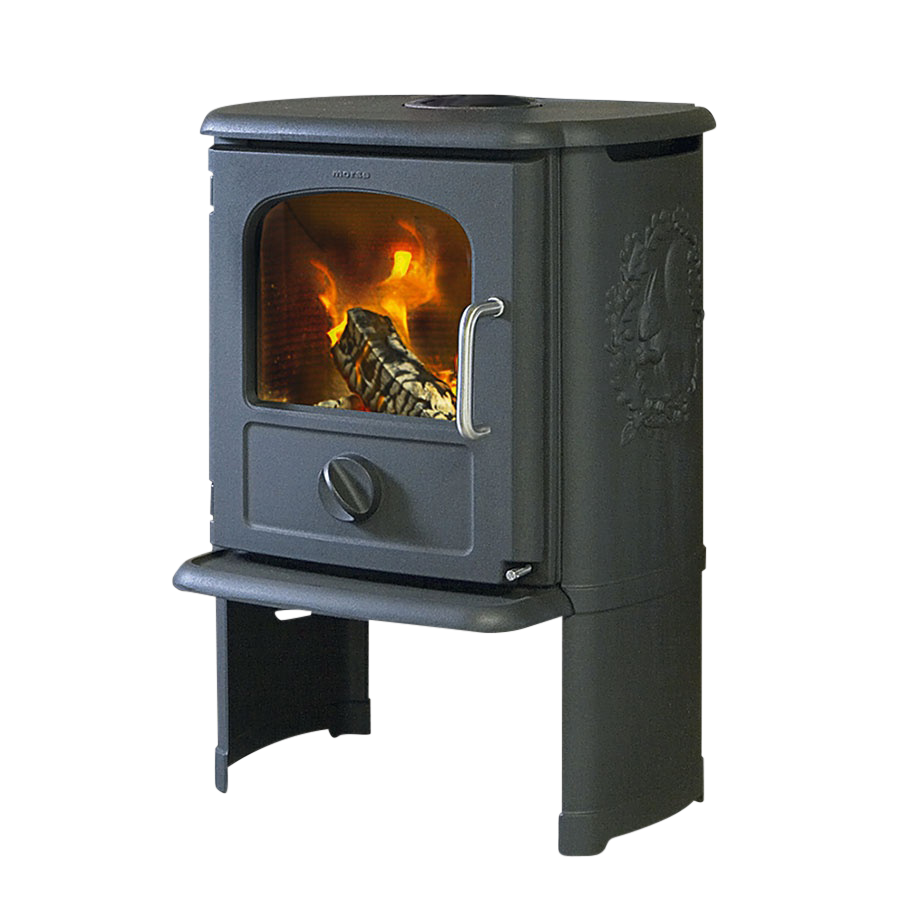

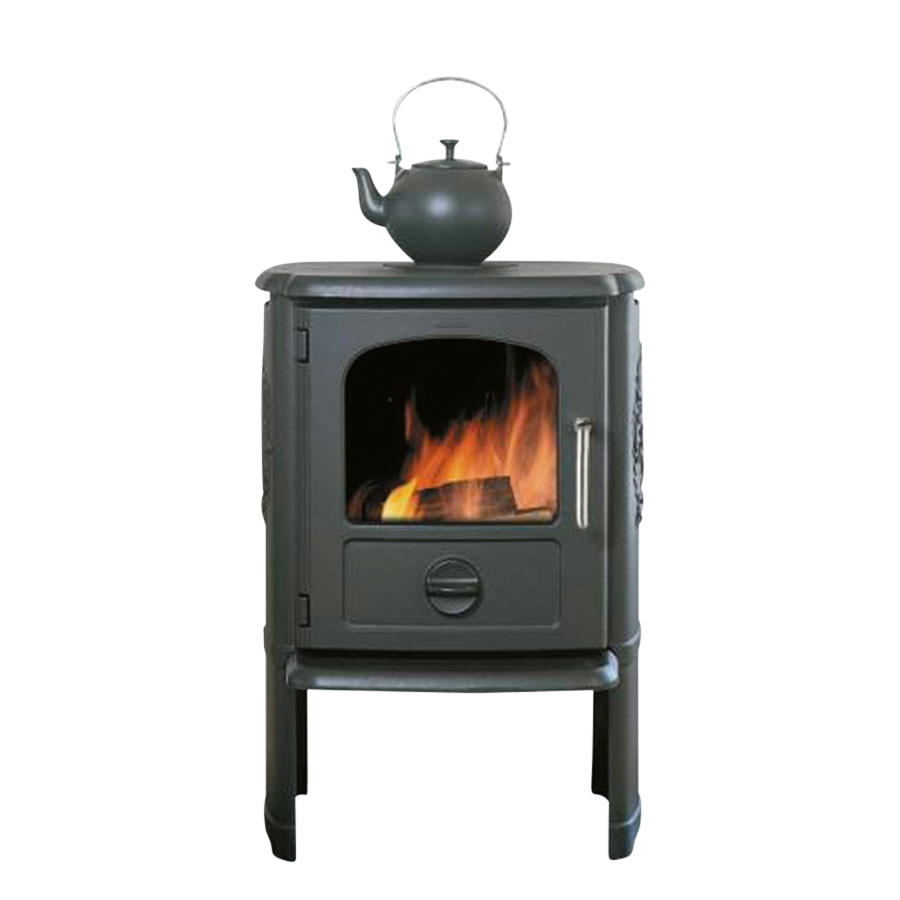

The 3142 is equipped with a riddling grate and ashpan, making it easy to remove ash and clean the stove.
It is manufactured using the latest combustion principles with tertiary air supply and meets the most stringent environmental requirements.

It can be fired with wood, briquettes or approved smokeless fuel and is suitable for heating an area of up to 75 cubic metres.

Technical data

Properties
  • Convection Fan
  • Pre-heated combustion air
  • Pre-heated secondary air supply
  • Ash Can
  • Airwash system
  • Tertiary Air
  • Riddling grate system
Fuel
  • Multifuel
Approvals
  • DIN+
  • EN/N
  • DEFRA
  • EPA
  • Ecodesign 2022
Specifications
Energy Performance Labelling Energimærkning
Rated Output (kw) 5
Heats (m2) 45 - 90
Height (mm) 739
Width (mm) 514
Dept (mm) 450
Flue outlet top Ø 125
Flue outlet rear Ø 125
Weight (kg) 110
Chamber Width (cm) 30
Clearance to combustibles
Rear (mm) 200
Sides (mm) 400
