Product description

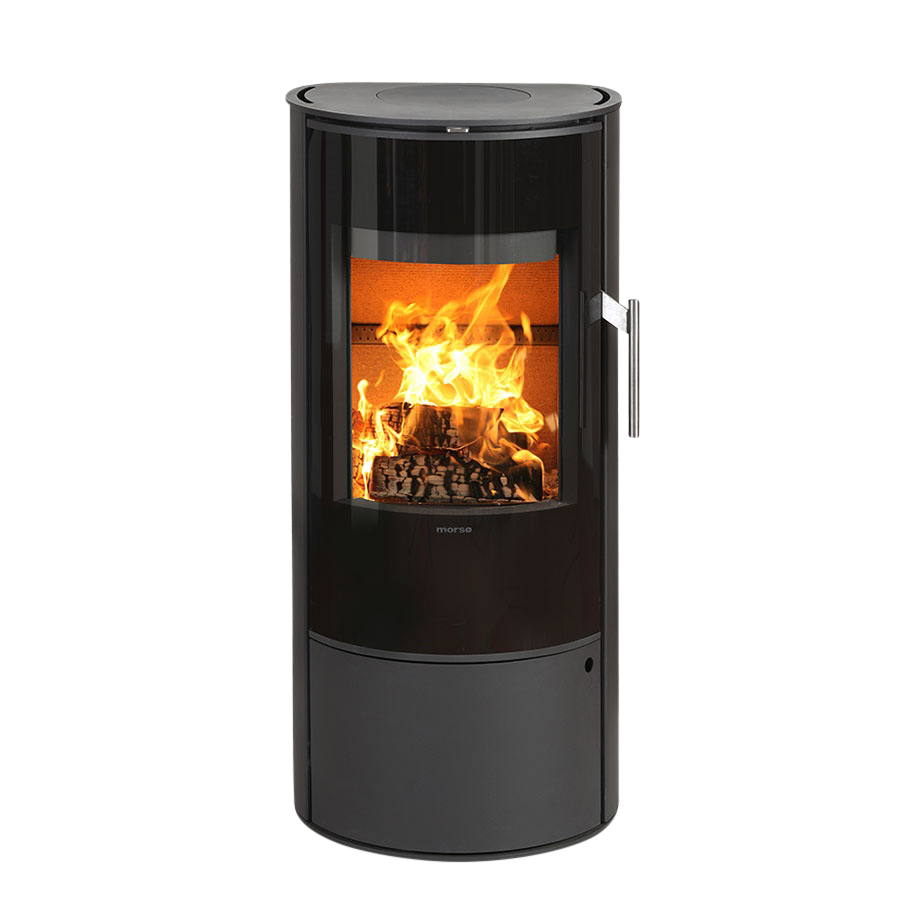

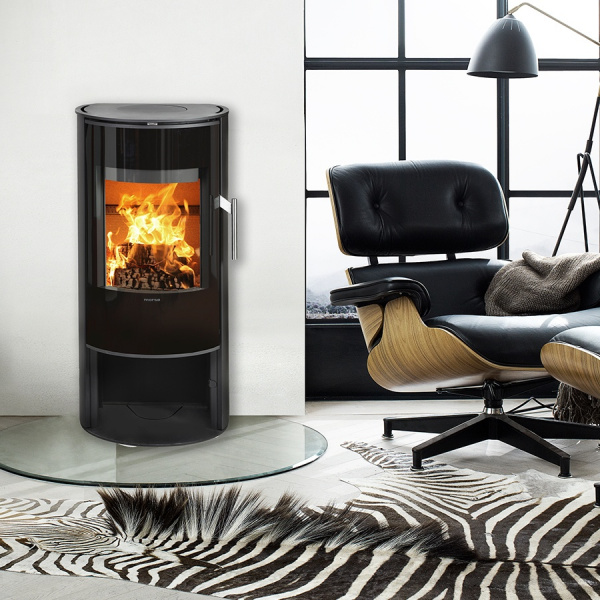

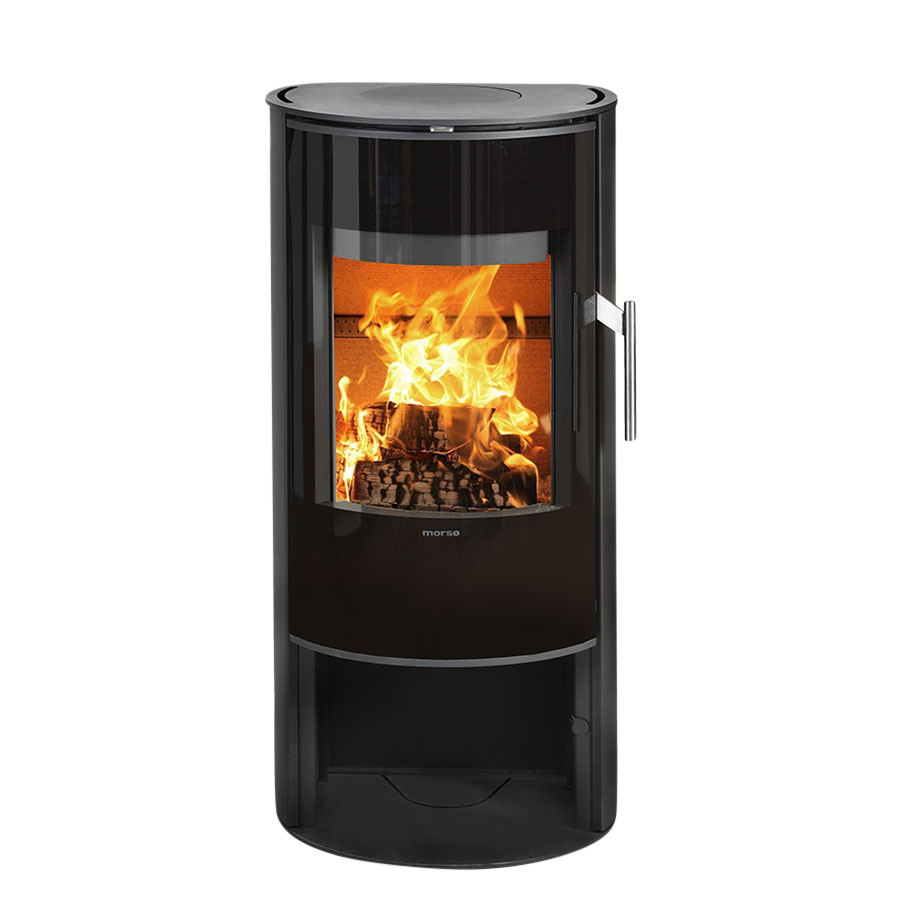

The Morsø 4100 series is a well-proportioned stoves of an exceptional appearance expressed by the mirror reflection effect of its large glass door. The stoves are, at the same price, available in various glazed surface-finishes: gloss/matt, white/black. This distinguished glazed finish lends the stoves a stylish and modern appearance.

Technical data

Properties
  • Convection System
  • Pre-heated combustion air
  • Pre-heated secondary air supply
  • Ash Can
  • Airwash system
  • Cold handle
  • Tertiary Air
Fuel
  • Wood
Approvals
  • EN/N
  • DIN+/AT
Specifications
Energy Performance Labelling Energimærkning
Rated Output (kw) 5
Heats (m2) 45 - 105
Height (mm) 980
Width (mm) 459
Dept (mm) 364
Flue outlet top Ø 120
Flue outlet rear Ø 120
Weight (kg) 105
Chamber Width (cm) 34
Clearance to combustibles
Rear (mm) 200
Sides (mm) 400
