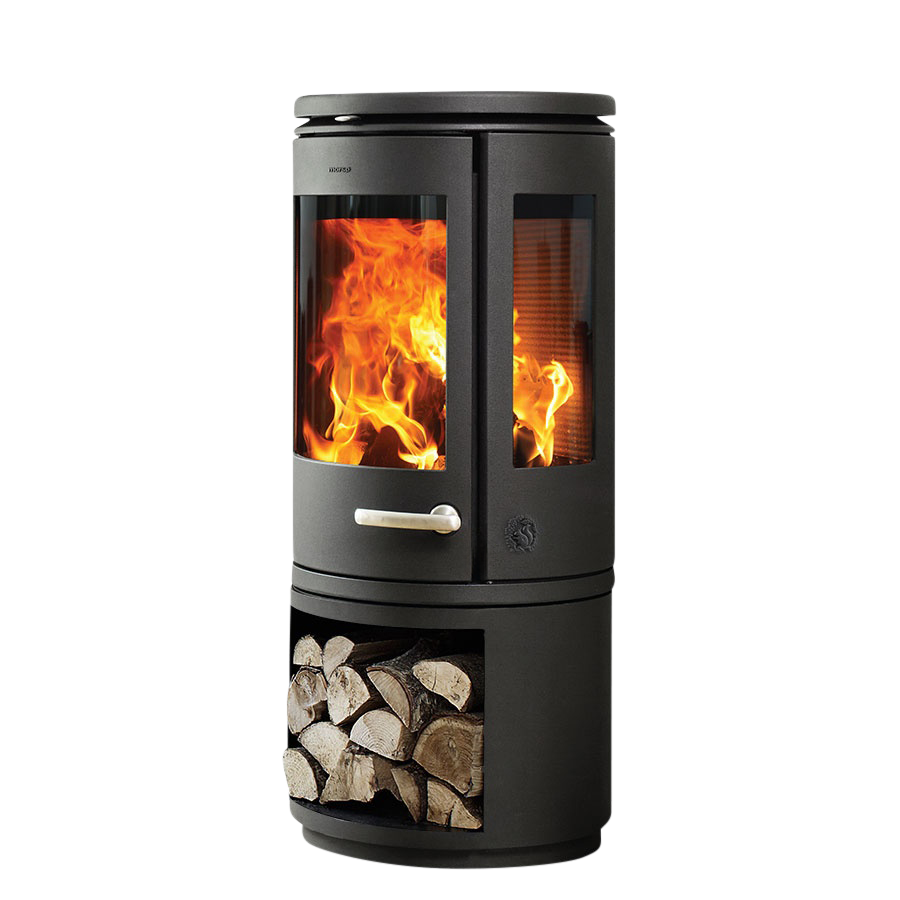

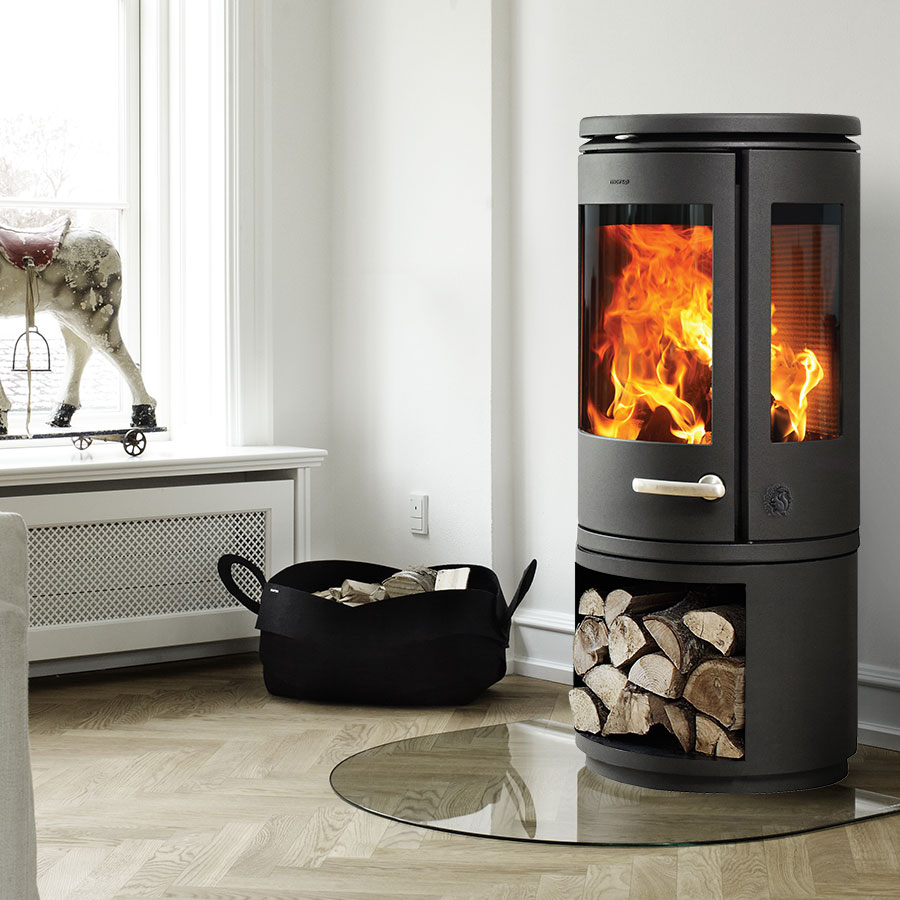

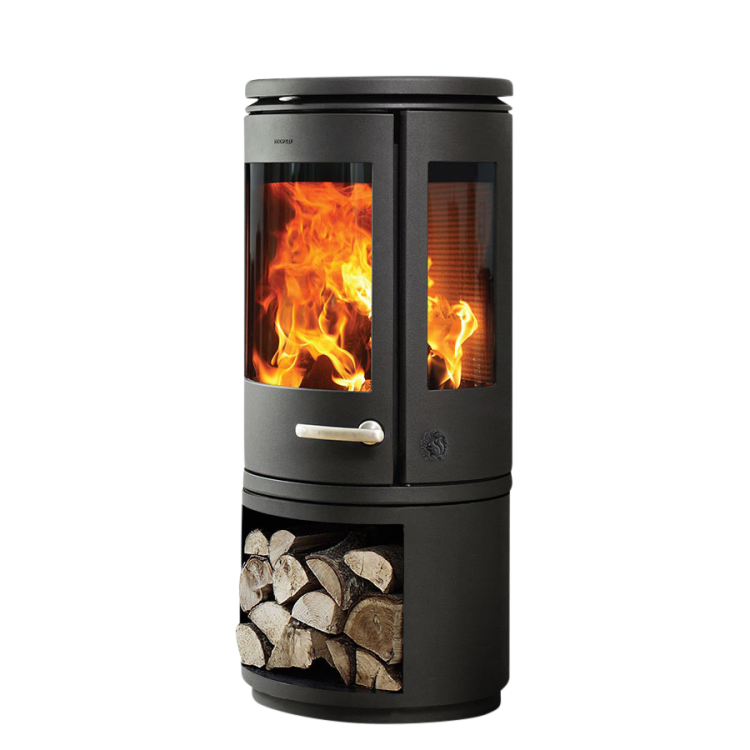

7943 with log storage
The Morsø wood-burning stove 7943 unobtrusively raises the combustion chamber with its spectacular glass sections just high enough up that the view of the fire's flames can be enjoyed from anywhere in the room. We have developed a brand new combustion chamber in which the stones are coated in a soft anthracite-grey dye, which increases the robustness of the stones in the chamber.

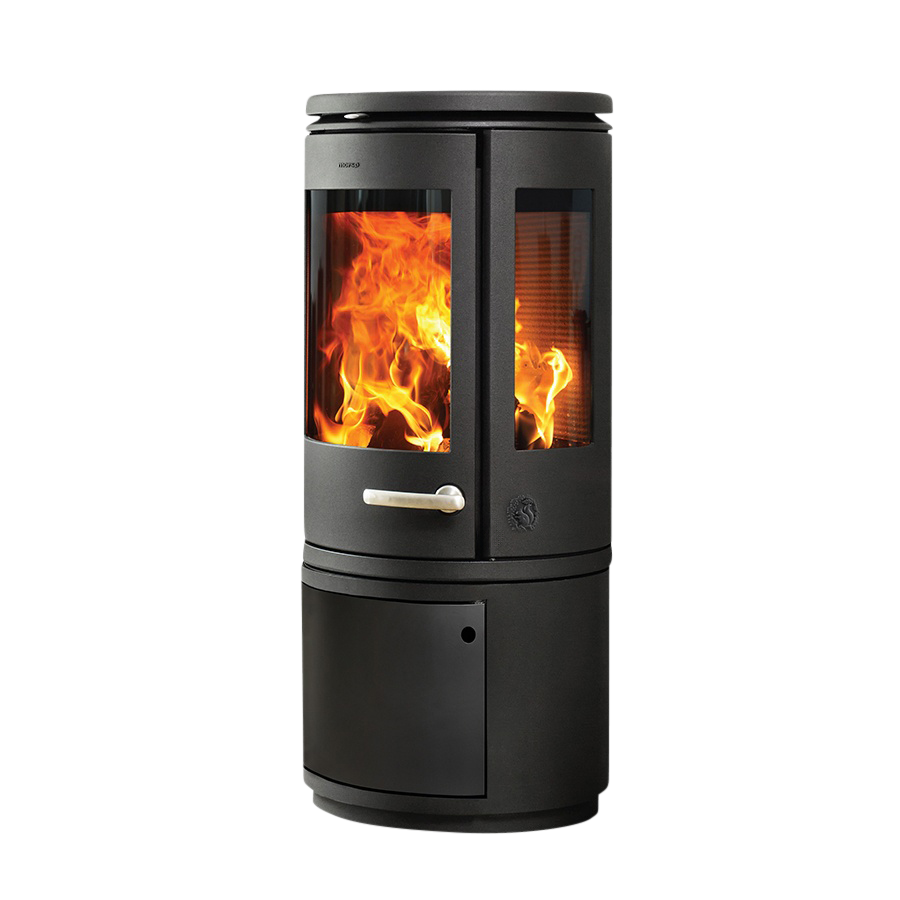

Cabinet Door for Morsø 7943 / 54798421
With the cabinet door for the Morsø 7943, it is now possible to considerable increase the applicability of the firewood cabinet. The elegantly curved door matches the shape of the base and permits "invisible" storage of various equipment. The easy-to-fit door is available as optional equipment.
--------------------------
-
Energy Performance Labelling

-
Rated Output7,6 kw
-
Heats from45 m2
-
Heats to120 m2
-
Convection System
-
Pre-heated combustion air
-
Pre-heated secondary air supply
-
Ash tray
-
Airwash system
-
Tertiary Air
-
Cast iron
-
Wood
-
DIN+
-
EN/N
-
DEFRA
-
DIN+/AT
-
EPA
-
AS/NZS
-
SCHWEIZER BRANDSCHUTZ-ZULASSUNG
-
Height1157 mm
-
Width504 mm
-
Dept435 mm
-
Flue outlet top150 mm
-
Flue outlet rear150 mm
-
Weight162 kg
-
Chamber Width33 cm
Pay attention to the flue pipe’s distance to combustible materials in accordance with its CE approval.
Always follow the instructions in the installation and user manual supplied with the wood stove, or see it below.
- Spare part drawing - 7943 with log storage
- Installation of Fresh Air Box - 7943 with log storage
- Instructions for installation and use - 7943 with log storage
- Product sheet - 7943 with log storage
- Declaration of Conformity - 7943 with log storage
- Instructions for installation and use
- Spare part drawing
- EU Regulation - Declaration of Conformity
- EU Regulation - Declaration of Performance
- EU Regulation - Technical Documentation
- Dimension drawing
- Product Sheet
