Morsø 6143 with log storage

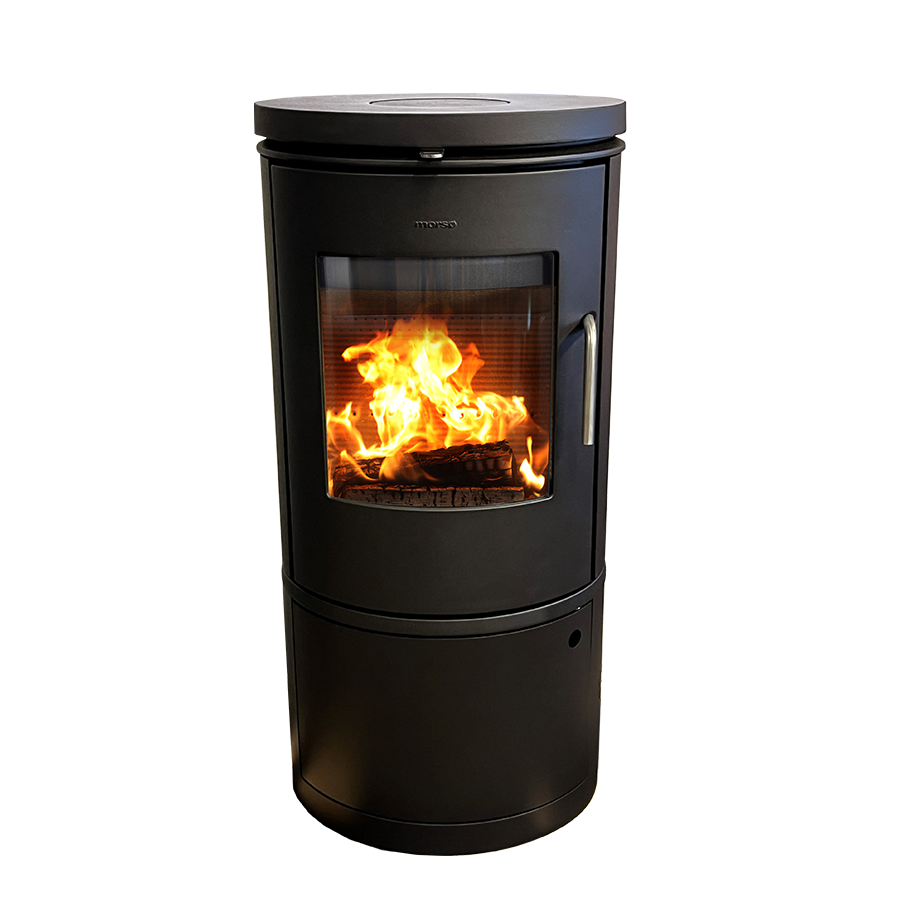

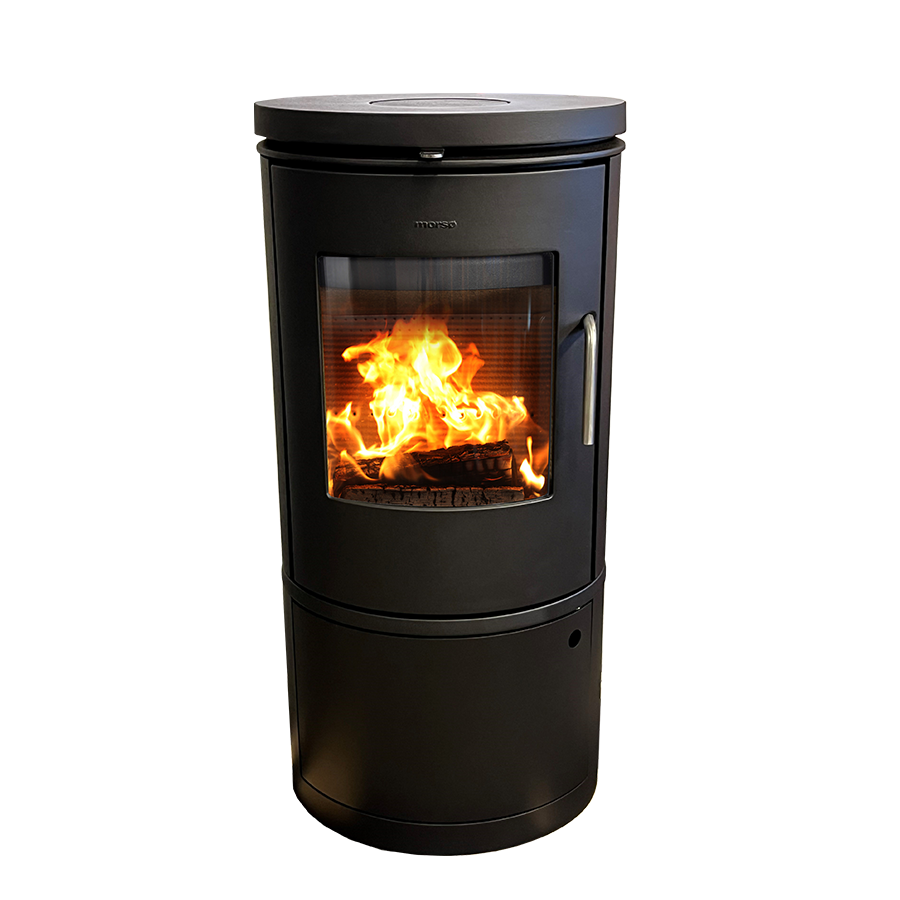

Morsø wood burning stove 6143 - A delight for the eye

21995
gx_morsoe_6143_300x300_frit

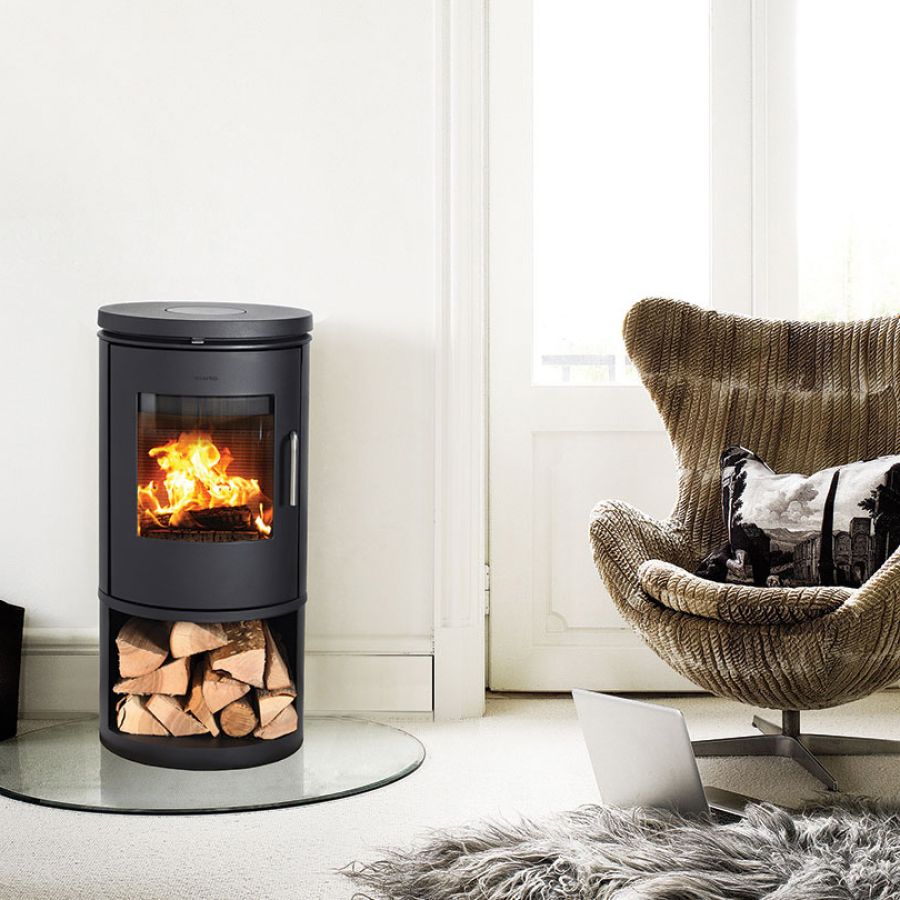

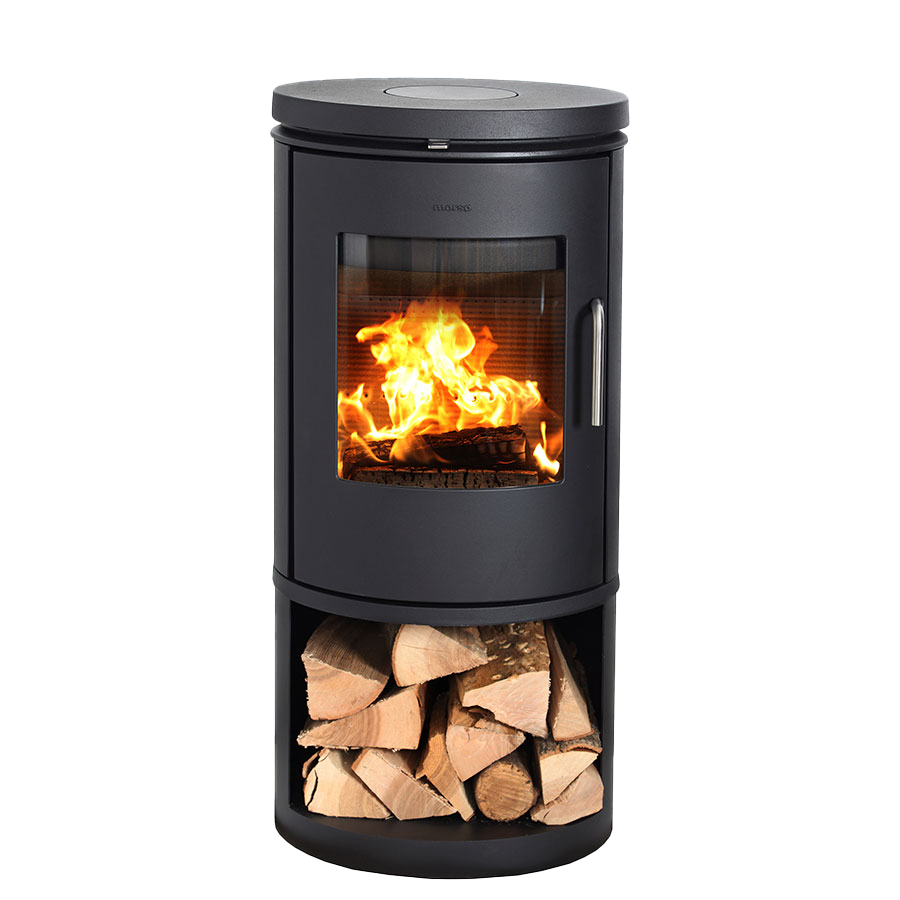

The Morsø wood burning stove 6143 will tastefully decorate any room with its deeply elegant oval column functioning as a log storage.

Employing a refined and timeless design idiom, this perfect design with its large glass door, concealed hinges and simple lines makes the Morsø 6143 an original gem.

Technical data

Technical data

  • Convection System
  • Pre-heated combution air
  • Ash Can
  • Airwash system
  • Tertiary Air

Technical data

  • 10 year limited warranty
  • Gasketed seams for tight seals
  • Chromium treated internal casting for durab
  • Reversible flue collar
  • Non catalytic burn technology
  • Clean-burning air wash system
  • Secondary air supply
  • Riddling grate system/shaker grate

Fuel

  • Wood

Approvals

  • EN/N
  • DEFRA
  • DIN+/AT
  • AS/NZS

Technical data

Maximum Heat 30,000
Log size 11"
Max. Area Heated 1000 ft2
Firebox Dimensions 13" W x 10" D
Firebox volume/capacity 0.744 ft3
Outside air supply Available
Gross Weight 288 lbs
Rated Output (kw) 6
Operating Output (kw) 3-6
Heats (m2) 45 - 90
Height (mm) 947
Width (mm) 451
Dept (mm) 386
Flue outlet top Ø 125
Flue outlet rear Ø 125
Weight (kg) 113
Chamber Width (cm) 30

Clearance to combustibles

Rear (mm) 150
Sides (mm) 400
Basic Clearance using single wall pipe top vent
Stove to side wall 10"
Stove to rear wall 3"
Stove to corner 5"
Basic Clearance using double wall pipe top vent
Stove to side wall 10"
Stove to rear wall 2"
Stove to corner 5"
