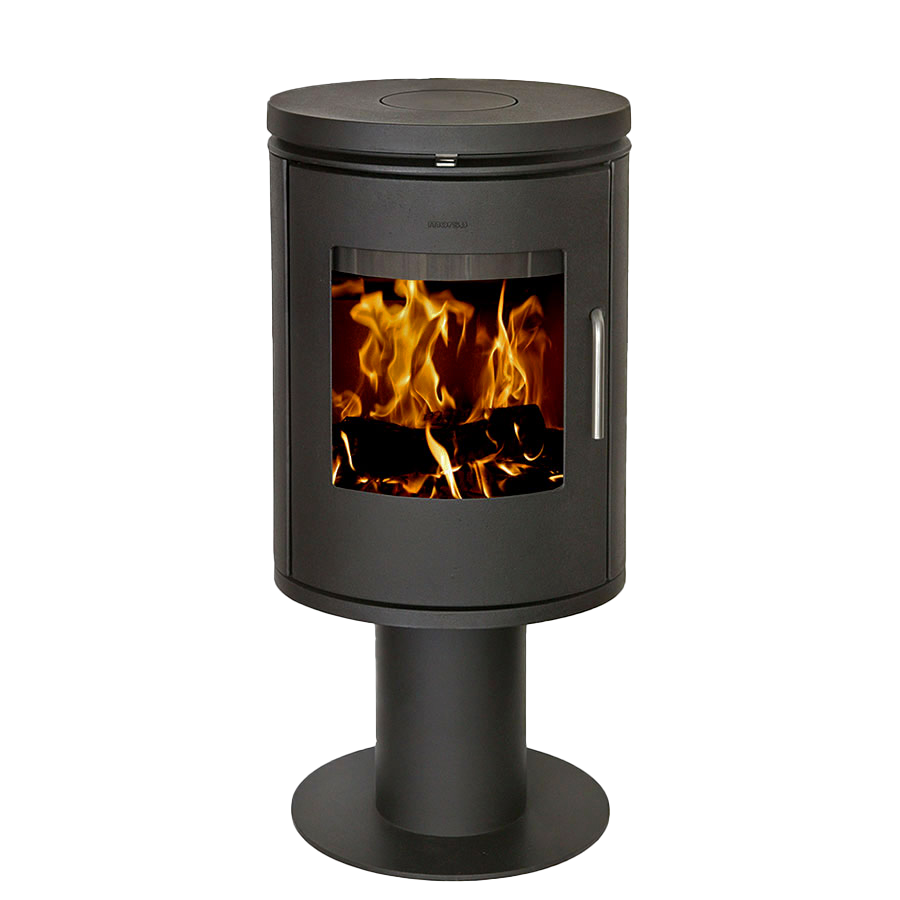

Morsø 6148 on pedestal

WELL-DESIGNED CLASSIC WOOD BURNING STOVE WITH BEAUTIFUL CURVES

21995
gx_morsoe_6148_300x300_frit

Morsø wood burning stove 6148 stands like a sculpture on its pedestal. A stove with a timeless and minimalist design, and a large glass door that provides an excellent view of the dancing flames.

Pure pleasure
Behind the glass, Morsø has developed a combustion technology that uses pre-heated air to ensure a higher temperature in the firebox, so that almost all the flue gases are burnt. This results in both more environmentally friendly combustion and better fuel economy.

Technical data

Technical data

  • Convection System
  • Pre-heated combution air
  • Pre-heated secondary air supply
  • Ash Can
  • Airwash system
  • Tertiary Air

Technical data

  • 10 year limited warranty
  • Gasketed seams for tight seals
  • Chromium treated internal casting for durab
  • Reversible flue collar
  • Non catalytic burn technology
  • Clean-burning air wash system
  • Secondary air supply

Fuel

  • Wood

Approvals

  • EN/N
  • DEFRA
  • DIN+/AT
  • EPA
  • AS/NZS

Technical data

Maximum Heat 30,000
Log size 11"
Max. Area Heated 1000 ft2
Firebox Dimensions 13" W x 10" D
Firebox volume/capacity 0.744 ft3
Outside air supply Available
Gross Weight 288 lbs
Rated Output (kw) 6
Operating Output (kw) 3-6
Heats (m2) 45 - 90
Height (mm) 950
Width (mm) 451
Dept (mm) 386
Flue outlet top Ø 125
Flue outlet rear Ø 125
Weight (kg) 110
Chamber Width (cm) 30

Clearance to combustibles

Rear (mm) 150
Sides (mm) 400
Basic Clearance using single wall pipe top vent
Stove to side wall 10"
Stove to rear wall 3"
Stove to corner 5"
Basic Clearance using double wall pipe top vent
Stove to side wall 10"
Stove to rear wall 2"
Stove to corner 5"
