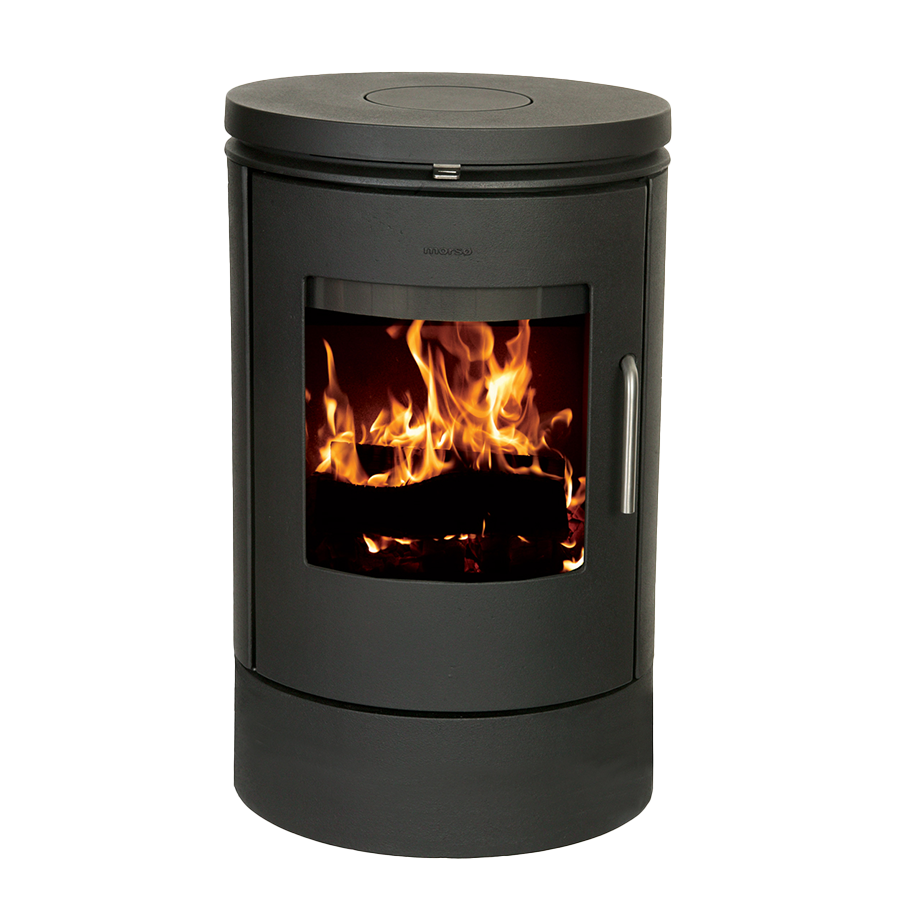

Morsø 6140 with low base

Well-designed classic wood stove with beautiful curves

21995
gx_morsoe_6140_300x300_frit

The 6140 wood stove is simple in design and timeless in style, featuring a serene ‘wholeness’ of clean lines, hidden hinges and functionality.

The Morsø 6140 design is complete in every sense; its form, construction and cast iron components blend natural together, fitting in with our basic philosophy to keep things simple.

The stove series is tested and approved to meet some of the strictest environmental standards in the world.

Technical data

Technical data

  • Convection System
  • Pre-heated combution air
  • Ash Can
  • Airwash system
  • Tertiary Air

Technical data

  • 10 year limited warranty
  • Gasketed seams for tight seals
  • Chromium treated internal casting for durab
  • Reversible flue collar
  • Non catalytic burn technology
  • Clean-burning air wash system
  • Secondary air supply
  • Riddling grate system/shaker grate

Fuel

  • Wood

Approvals

  • EN/N
  • DEFRA
  • DIN+/AT
  • EPA
  • AS/NZS

Technical data

Maximum Heat 30,000
Log size 11"
Max. Area Heated 1000 ft2
Firebox Dimensions 13" W x 10" D
Firebox volume/capacity 0.744 ft3
Outside air supply Available
Gross Weight 258 lbs
Rated Output (kw) 6
Operating Output (kw) 3-6
Heats (m2) 45 - 90
Height (mm) 753
Width (mm) 451
Dept (mm) 386
Flue outlet top Ø 125
Flue outlet rear Ø 125
Weight (kg) 100
Chamber Width (cm) 30

Clearance to combustibles

Rear (mm) 150
Sides (mm) 400
Basic Clearance using single wall pipe top vent
Stove to side wall 10"
Stove to rear wall 3"
Stove to corner 5"
Basic Clearance using double wall pipe top vent
Stove to side wall 10"
Stove to rear wall 2"
Stove to corner 5"
