Morsø 1410 squirrel sides

Morsø’s air wash system will maintain a clear glass, maximising your enjoyment of the stove.

21995
1412_300x300_frit_27190

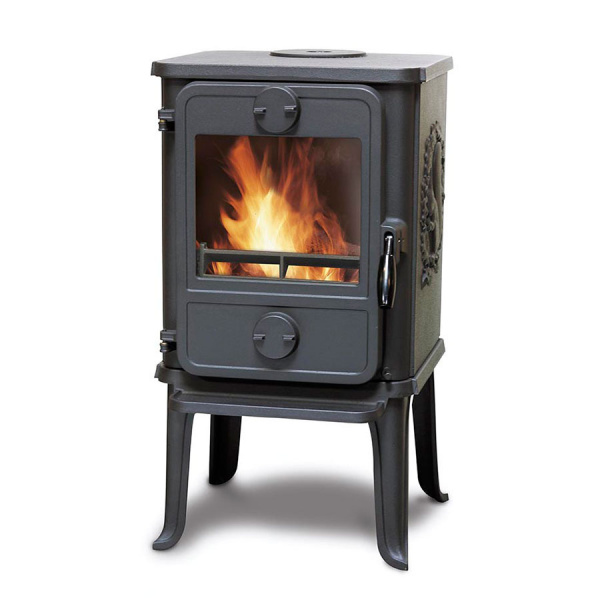

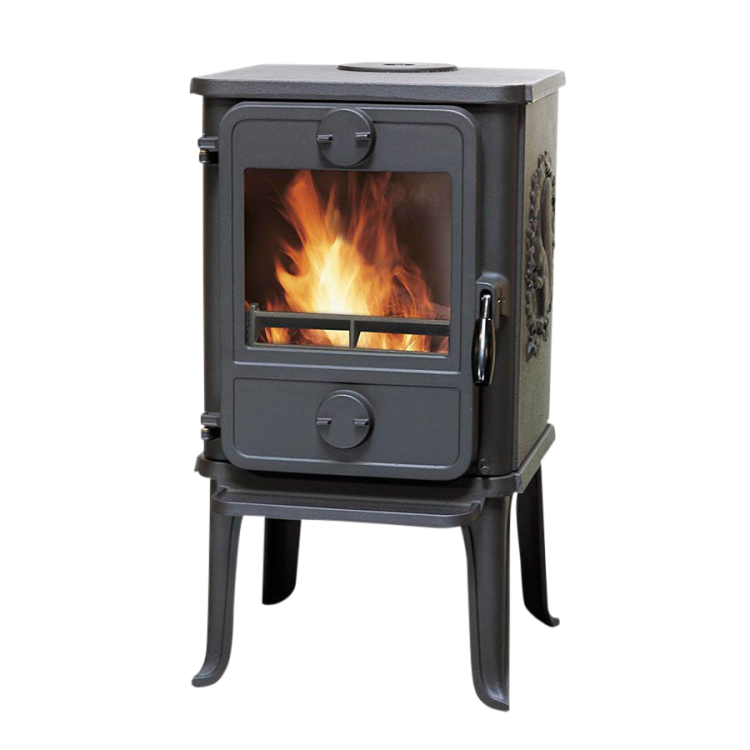

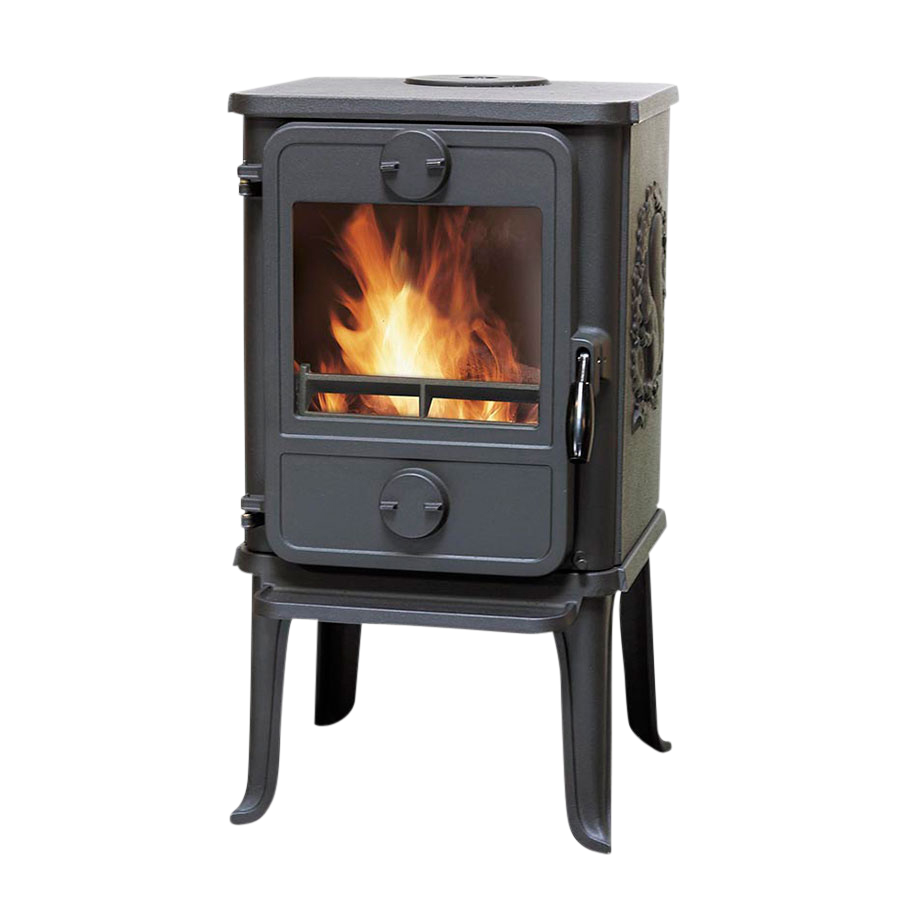

The stove has an exceptional viewing window for such a small multi-fuel cast iron stove. Morsø 1410 is a classic radiant wood stove that will quickly and efficiently heat small rooms. A traditional wood stove decorated with Morsø’s classic squirrel relief on both sides.

Despite its compact design, the stove has a powerful 5kw rated output making it ideal for a country cottage or city living. The 1410 is equipped with a riddling grate and ash pan, which makes it easy to remove the ash and clean the stove.

Morsø’s air wash system will maintain a clear glass, maximising your enjoyment of the stove.

Versatile and practical
Morsø 1410 wood stove comes equipped with riddling grate, ash tray and ashpan, making it easy to remove ash and clean the stove. Morsø’s combustion system with airwash ensures that the glass always remains clean when the stove is correctly fired.

Technical data

Technical data

  • Radiant Heat
  • Ash Can
  • Airwash system
  • Riddling grate system
  • Primary airsupply
  • Secondary airsupply

Technical data

  • Radiant Heat
  • 10 year limited warranty
  • Gasketed seams for tight seals
  • Chromium treated internal casting for durab
  • Reversible flue collar
  • Non catalytic burn technology
  • Clean-burning air wash system
  • Riddling grate system/shaker grate

Fuel

  • Wood

Approvals

  • EPA

Technical data

Maximum Heat 30,000
Log size 12"
Max. Area Heated 1000 ft2
Firebox Dimensions 12 1/4" W x 10 3/4" D
Firebox volume/capacity 0.736 ft3
Outside air supply Not available
Gross Weight 215 lbs
Rated Output (kw) 5
Height (mm) 703
Width (mm) 388
Dept (mm) 368
Flue outlet top Ø 80
Flue outlet rear Ø 80
Weight (kg) 70
Chamber Width (cm) 28

Clearance to combustibles

Rear (mm) 100
Sides (mm) 600
Basic Clearance using single wall pipe top vent
Stove to side wall 20"
Stove to rear wall 16"
Stove to corner 14"
Basic Clearance using double wall pipe top vent
Stove to side wall 20"
Stove to rear wall 6"
Stove to corner 14"
