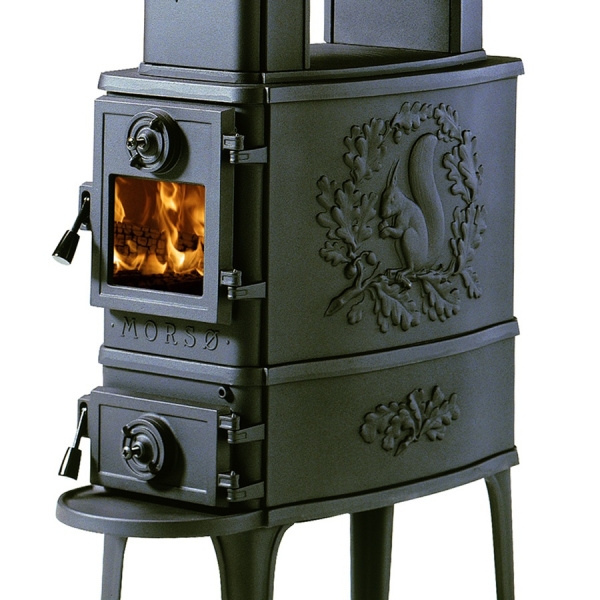

Morsø 2B Classic

A practical Classic

21995
gx_morsoe_2bclassic_300x300_frit

Morsø wood stove 2B Classic is a true classic which has been manufactured in different versions for more than 70 years.


A practical classic wood stove
This extremely popular cast-iron wood stove can, with its long firebox, accommodate logs up to 18 inches in length. It is a radiant wood stove and is equipped with a riddling grate, ash tray and ashpan, and, can be fired with wood.

Like most other Morsø wood stoves, the 2B Classic meets the most stringent environmental requirements in the world.

Morsø’s characteristic 2B Classic with radiant heat is still a very popular series. The long firebox is large enough to take logs 18 inches long. It can heat up to 1,200 sq.

Technical data

Technical data

  • Pre-heated secondary air supply
  • Ash Can
  • Airwash system
  • Tertiary Air
  • Riddling grate system

Technical data

  • Radiant Heat
  • 10 year limited warranty
  • Gasketed seams for tight seals
  • Chromium treated internal casting for durab
  • Reversible flue collar
  • Non catalytic burn technology
  • Clean-burning air wash system
  • Secondary air supply
  • Riddling grate system/shaker grate

Fuel

  • Wood

Approvals

  • DIN+/AT
  • EN

Technical data

Maximum Heat 35,000
Log size 18"
Max. Area Heated 1200 ft2
Firebox Dimensions 7" W X 21 1/2" D
Firebox volume/capacity 0.82 ft3
Outside air supply Not available
Gross Weight 253 lbs
Rated Output (kw) 8
Operating Output (kw) 6-10
Heats (m2) 90 - 150
Height (mm) 1090
Width (mm) 328
Dept (mm) 718
Flue outlet top Ø 120
Weight (kg) 125
Chamber Width (cm) 45

Clearance to combustibles

Rear (mm) 400
Sides (mm) 850
Basic Clearance using single wall pipe top vent
Stove to side wall 26"
Stove to rear wall 7"
Stove to corner 22"
